ITEM 1: CK100 V46.02

Description:

1.CK100 V46.02 is the update version of SBB V33.02, increase much more feature and functions. More powerfull and functionalSupport for Toyota G Chip

2. This CK-100 CK100 Auto Key Programmer comes with the newest version V46.02, added more new car models for Ford, for Honda and for Toyota.

Top 6 Reasons to Get the CK-100:

1. CK 100 Key Programmer Software Version: V46.02

2. Language: English,Italiano,Deutsch,Francais,Espaniol,Portugues,Turkish

3. It contain 1024 tokens,when use out, please send back to add tokens(support to add tokens by changing chips.)

4. Support for Toyota G Chip

5. It is a new generation of the SBB Key Programmer, the replace version

6. Add more new car models:for Ford,for Honda and for Toyota, some car models support till 2014 year.

Notice:

1. Can't Update

2. If CK100 fails to adapte key, pls disconnect OBD16 adapter and car, after 10 seconds connect again, otherwise vehicle immo system may get damaged and CK-100 will be locked too.

3. Need pin code to do for Ford

FAQ:

Q: Does CK-100 work on for Toyota G Chip

A: Yes, It can do this

Q: If  it can work on for Ford?

A: Yes, but pin code need for Ford cars

Q: Does it support update?

A: No, it can not update now

Q: I follow the video, open the device, while this information comes out “PRESS ESC TWICE PLEASE”, I follow this to press ESC twice, while nothing happen, what I can do now?

A:Please connect the device to 12v power supply to test.

Q: Does the SK117 support for corolla 2011 for camery 2012?

A: pls use allscanner it3 for this model.

Q:Can it read pin code?

A:Yes,it can,but depends on brand.

Q:Dear sir,I have 2002 for ford explorer,I want to buy T300 or CK100,can you advise which is better for my car?

A:T300 is better for old cars,but still need to check if the key program has the adapter for your car.

Packing List:

1pc x CK100 V46.02 Main Unit

1pc x USB Cable

1pc x Power Supply

Compared with Silca Sbb, CK-100 Auto Key Programmer New Add Models:

ITEM 2: CK100 V99.99

Description：

Newest Generation CK-100 Auto Key Programmer V99.99 SBB have much more function than SBB key programmer.

Top 6 Reasons to Get CK-100:

1. Newest Version: V99.99.  It is a new generation of the SBB Key Programmer, the replace version.

2. Multi-Language: English/ Italian/ Dutch/ French/ Spanish/ Portuguese/ Turkish

3. Increase much more features and functions, and cheaper than SK117.

4. Alternative to function and feature of the SBB V33.02.

5. Contains 1024 tokens.

6. More powerful and functional.

Note:

1. Can't Update

2. If CK100 fails to adapte key during programming, please disconnected OBD16 adapter and car, then connect again after 10 seconds, otherwise vehicle immo system may be damaged, CK-100 key programmer will be locked too.

How to use CK100 auto key programmer:

Firstly, Prepared two keys, one key can start the engine, another one cannot (blank key) and

connected cable to the device.

Secondly, Connected obd2tuning CK100 auto key programmer v45.6 device into the OBD socket.

Next, Turned on obd2tuning CK 100 pin code device.

Following was selecting car model according to obd2tuning V45.6 CK100 instructions.

Then, Inserted a key and turned the console.

Turned ignition on then removed the key.

After that, allowed to add a blank new key while left ignition off.

Waiting for 45 seconds (max 60 seconds) until the safety access procedure was completed.

Finally, blank key has been stored. Tried the second key and the engine can be started by the end.

Real case:CK100 Key Programmer add for VW Transporter key

CK-100 Key Programmer Reviews:

1.By Zio Jay:I m an auto tech/ smog tech & locksmith.Here's my two cents on this product.

Pros: Started right up. Easy to use. Yes, does newer cars. Some cars need a PIN number "sometimes" to program the key. Excellent upgrade from my old SBB.

Cons: Programs "limited" amount of vehicles. Its got built-in tokens. Once it runs out of tokens, its gonna be a paperweight.

For the price, its well worth buying. This tool has already paid for itself.

2.By Shawn:Worked for me, so far I have programmed a 2005 FOR Ford F-150 and a 2005 FOR Mazda 6. Initially I could not program the f150, every time I would go though the ten minute security waiting period It would say no loaded key. So I made sure all the code were cleared and used the erase all key function instead of the add key function. After the 10 minute waiting period it will say all keys erased then it goes into programming mode. Simply place the 1st key to be programmed wait 5 second then the next and so on. Note if you already had a key programmed use the one that was previously programmed 1st then the others. On the FOR Mazda I replaced the PCM and simply used the add a key function. Came with 1024 tokens only used one so far using the erase feature with the FOR ford. From what I understand if you use the add a key function on the ford it uses 8 tokens per key.

CK-100 V99.99 FAQ:

Q: Can I use CK-100 V99.99 do for Toyota G chip and for Ford?

A: Yes, you can do for Toyota G chip with it. And you need pin code to do the for Ford.

Q: Dose it support French?

A: Yes! CK-100 Key Programmer V99.99 supports 7 languages for your need including English, Italian, Deutsch, French, Spanish, Turkish and Portuguese.

Q: What is the difference between CK-100 key programmer V99.99 and CK-100 V45.02?

A: Both of them have the same functions. But the version is different. CK-100 V99.99 is newer and cheaper than CK-100 V45.02

Packing List:

1pc x CK100 V99.99 Main Unit

1pc x USB Cable

1pc x Power Supply

1pc x Packing Carton

CK-100 Key Programmer Car List:

 SBB V46.02 Key Programmer with 9 Languages

What difference between SBB V46.02 and SBB V33.02?

1. SBB V46.02 add more newer cars such as  for Acura 2012, For Chevrolet 2013, For GMC 2013..

SBB V46.02 support the cars till 2014, but SBB V33.02 only till 2011.

2. SBB V46.02 Add RS232 cable ,

What main difference between SBB V46.02 and CK100?

Their car coverage and function is same , but SBB V46.02 is cheaper than CK100 V46.02.


Attention :

1.  SBB support Programming a new key when you lost car key , Not Cloning a key when you Have orginal key.

2.  If you want SBB car list, pls leave email then I will email you the car list as a reference.

3.  Every product has been basically tested before sending to make sure operating in good conditions!

4. It can't be updated online. Or it will be damaged.

5. Every product has been tested before sending to you to make sure operating in good conditions!

SBB V46.02 key programmer:

1. SBB Support Multi-Languages:

English,Spanish,French,Italian,Russian,German,Portuguese,Turkish,Greek

2. SBB Key Programmer is a universal key programmer for programming multi-brands car keys, because its software with database contains the most important vehicle information. Compare to the former version which supports global cars, SBB key programmer V33.02 support new cars like For Ford 2010 and Hummer.

3. SBB is a new device used as a portable unit for programming keys in immobilizer units on vehicles. Due to its integrated hardware SBB needs no more than the OBDII cable provided to carry out a wide range of functions.

4. SBB key programmer is better for European vehicles, and it is no token system.

SBB V46.02 Functions :

1. Programming new keys

2. Reading keys from immobilizers memory

3. Reactivating keys no longer in the car owners possession

4. Operation by means of a menu guided programming

5. Programming new remote controls

6. Support Pin code service for some cars

7. Software with full database containing all the most important vehicle makes


How To Use SBB:

1) Before running SBB key programmer, please insert the blank new key into your car keyhole;

2) Turn on ignition switch;

3) Insert SBB 16-pin interface into your car OBD2 diagnostic seat.

4) Follow the instructions showed on the SBB screen.

SBB key programmer copies chip according to car model, and it programs key not clones key, you only needs to insert SBB 16-pin interface into your car OBD2 diagnostic seat, then read out immobilizer pin code from immobilizer dump/EEPROM of the car before writing it into new blank key. When programming For Ford vehicle, it does not need pin code.



Some Useful FAQ:

Q:  Can SBB match Australia Falcon and Holden Commodores?
A: Yes, it can do the cars.

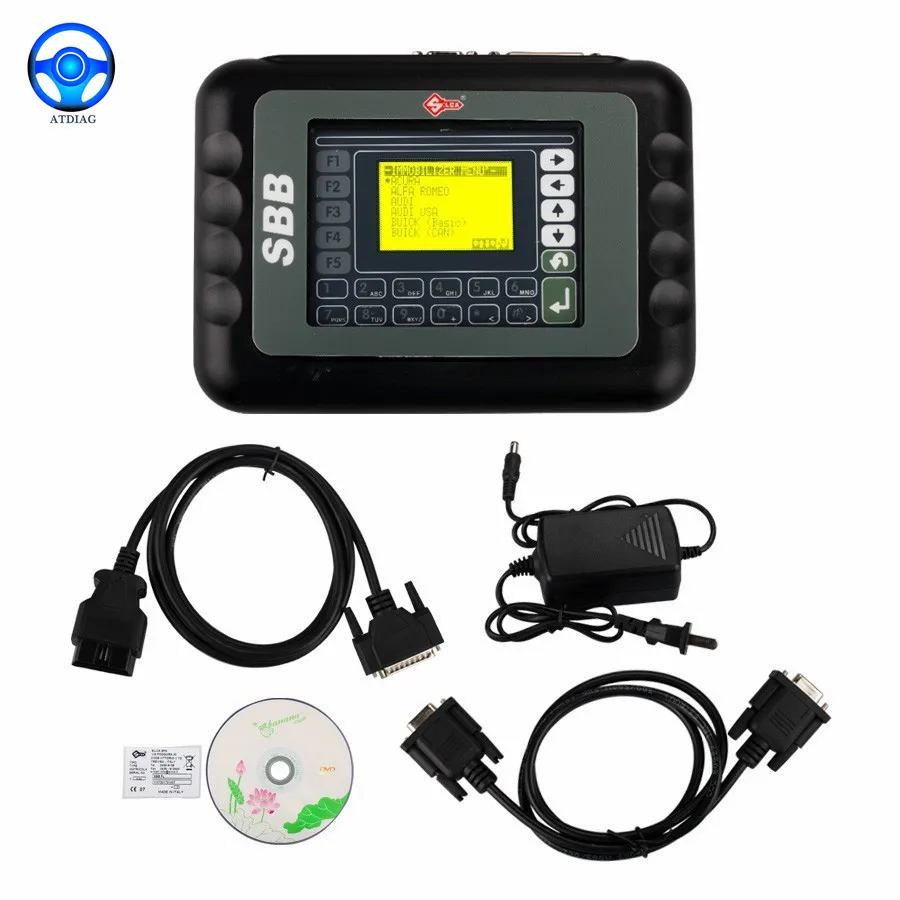

Package List :

1pc x SBB Main Unit

1pc x OBD II cable

1pc x AC adapter

1pc x RS232 Cable

1pc x CD with user manuals+Update SOftware

Software Of SBB V46.02 VS SBB V33.02:

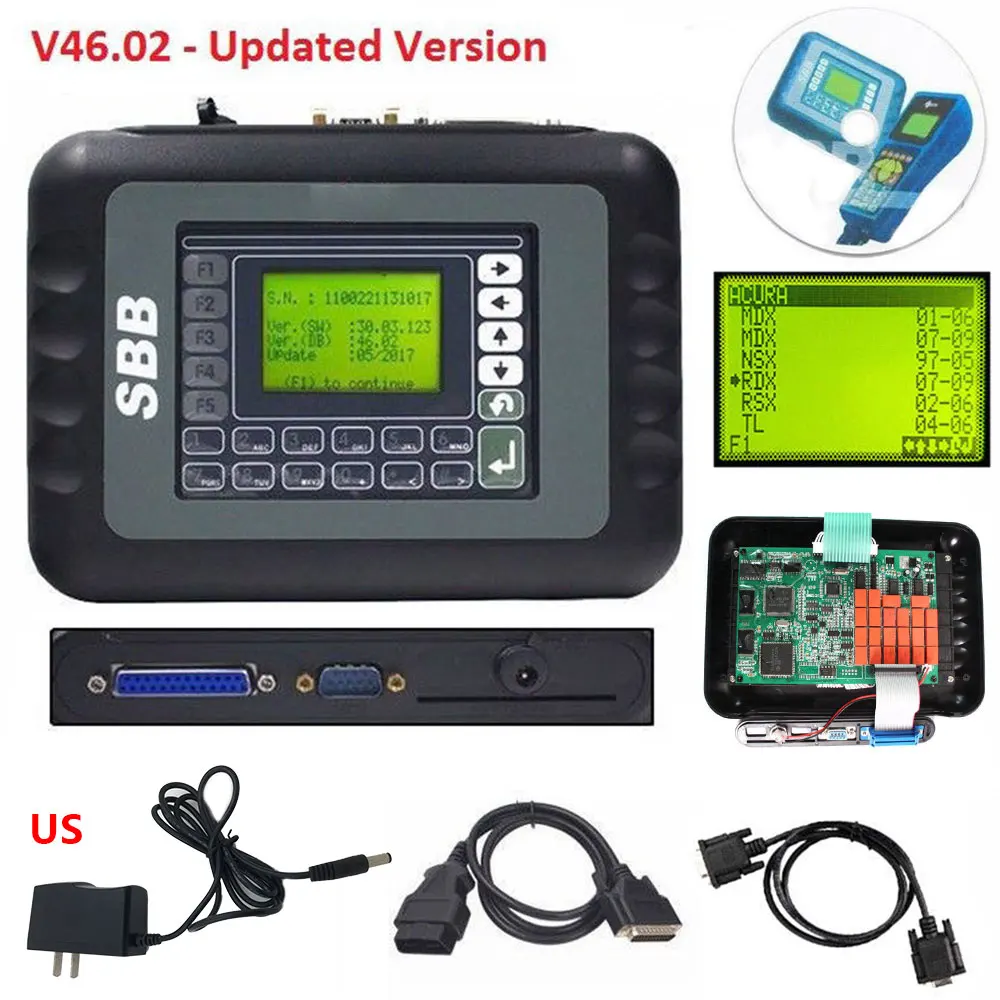

ITEM PICTURES:

Latest SBB Pro2 V48.99 V48.88 V46.02 Mini Zedbull Auto Key Programmer SBB Pro 2 48.99 48.88 Zed Bull OBD2 Car Key Maker Transponder Clone Device

Please Pay Attention:

About delivery:

  1. China Post Shipping normally need 35-60days to arrive.Please be patient to wait. Many thanks.

  2. Please notice:If send parcel to Brazil via China Post,delivery about 30-90 days.

About Order:

There are 6 kinds for optional on my link:

1.Mini ZedBull (Black+Red)

2.SBB V48.99

3.SBB V48.88

4.SBB V46.02

5.SBB V48.99 + Red Mini ZedBull

6.SBB V46.02+Red Mini ZedBull

-----------------------------------------------Mini ZedBull Part Instruction-------------------------------------------

------------------------------------------Mini ZedBull Part Instruction---------------------------------

What difference between SBB V48.88 and SBB V46.02 :

Main Feature of Smart Zed-Bull:

1.Finding PIN Code, Preparing Precoded Transponders and Programming Transponders from EEPROM and MCU.

Zed-BULL PC software is excellent features will help you while using EEPROM applications. ECU pictures, which ECU has which MCU or EEPROM and the location of mcu or eeprom on the board, which type transponder will be used... These kind of information will ease your work. With Automatic Module Finding (AMF) feature, when you select the EEPROM file, the module will be recognized automatically

Another revolution of Zed-BULL is programming transponders when there is no key from ECUs. For now, Zed-BULL has 55 different applications and it is increasing... With this feature, you can program transponders, find pin codes and prepare precoded transponders for the cars which need precoded transponders like fiat doblo 48. For this feature, you don't need expensive precoded transponders priced about 8-10 Euro. You can use blank transponders.

2. Transmitter cloning.

11, 12, 13, 33, 73, 4C (writing to 4C electronic key and battery less TPX1 transponder), Plips Crypto 40 (some), 41(all), 42(all), 44(all unlocked VAG), 45(all)

Until now, common transponder cloning tools could only copy fixed transponders. But the revolution that we started with our device, Zed-Qx, is increasing with Zed-BULL. 41(NIS-SAN), 42(VA-G), 44(Unlocked VAG) and 45(PEU.GEOT) transponders which normally known as can not be copied, can be copied with Zed-BULL.

3. Producing Transponders for OBD Programming

If you have an OBD device like T-Code Pro, you will need special precoded transponders for some cars. Instead of buying these special transponders for high prices, you can produce them with Zed-BULL using blank transponders. And you don't need expensive precoded transponders priced about 8-10 Euro... The transponders that you can produce: 40, 41, 42, 44 Mitsubishi, 44 VA-G, 45, 73 Mits-ubishi, 61, 62, 65 and 46 for BM-W, AU-DI, POR-SCHE, CHRY-SLER, RENA-ULT... etc. For now, Zed-BULL has 24 different transponder production applications.

4.Four Hitag2 Transmitter Program

If you want to buy a hitag2 programmer as standalone device, you have to pay around 1000-1500 Euro. But when you have Zed-BULL, you will get this hitag2 programmer feature for FREE. You can work on hitag2 transponders and improve yourself on your job.

5. Easy Use with Wide Graphic LCD Screen.

Wide screen of Zed-BULL will show you much more.... With Zed-Bull is wide screen, you can see more information like, VIN number and kilometer info for BMW cars, detailed information for 46 and 48 transponders ... etc.

6.Additional Function:

1) Reading kilometer, VIN number and key number information from original BMW key and writing to original BMW remote key

2) Finding PIN code from VIN number for HYUNDAI and KIA

3) PC software includes a wide-range transponder catalog, key fob procedures and more information

4) PIN code finding for 33 Renault and 45 Peu.geot from transponder

5) Unlocking the 48(magic II) type locked transponder and make it re -usable

6) Saving transponder information into database including crypto transponders

7) 3 different device case color alternatives (red, black and white).

1x Zed -bull Main Unit

1x PC USB Cable

1x Power Adapter

1x CD

Sbb Key Programmer V33.02

SBB key programming tool can still make key even when the

customers lost their automobile keys, because SBB interface is to insert into

the OBD diagnostic seat to read chip data.

The steps of SBB make car keys:

1) Before running SBB key programmer, please insert the

blank new key into your car keyhole;

2) Turn on ignition switch;

3) Insert SBB 16-pin interface into your car OBD2

diagnostic seat. SBB key programmer copies chip according to car model, and it

program key not clone key, it only needs to insert SBB 16-pin interface into

your car OBD2 diagnostic seat, then read out immobilizer pin code from

immobilizer dump/eeprom of the car before writing it into new blank key. When

programming Ford vehicle, it does not need pin code.

SBB key programmer is better for European vehicles, and it

is no token system.

SBB copies chip according to car model, while AD900 does

according to chip model. SBB key programming tool can still make key even if all

of keys lost, because SBB interface is to insert into the OBD diagnostic seat to

read chip data; AD900 can write the chip of an old key into a new key or empty

key. And SBB can read immobilizer pin code as MVP and T300 do, while AD900 can

not read immobilizer pin code, AD900 can not read immobilizer pin code, AD900

can directly copy and duplicate keys.

SOFTWARE DISPLAY:
